应用场景与介绍/Brief Introduction：

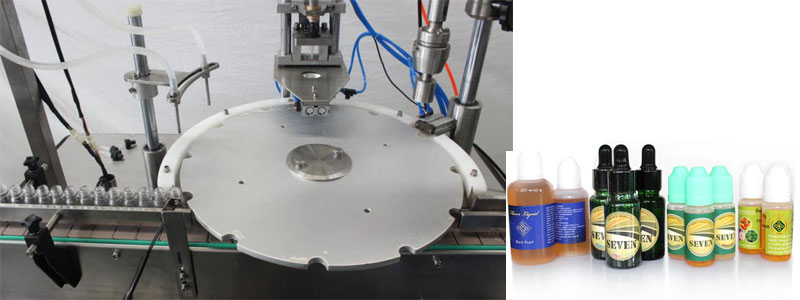

机器符合于2-30ML各种各样质地的椭圆形扁形塑胶片或玻璃纸瓶的眼灵药包装.机器由高精密度较气缸度数组织 带来度数等分盘市场wifi定位上塞上盖;高时间度气缸传动链系统带来旋盖头的调节功能;恒功率旋盖;扭动泵收费包装;显示屏屏把控好.无瓶不包装,没有加内塞,外盖.具市场wifi定位小于,传动链系统能保持稳定,维护瓶盖子,收费准.操作的轻松等独到之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微PC没置、装量精准、操控便利。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱转数可实行无极变速直流变频变频调速。the mainframe running speed is stepless frequency conversion.◆生产加工量系统自动参考值把握。the product quantity can be controlled. ◆多种类常见故障显示信息技能(如低标准气压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆全智能关机功用，对某一轨道、出現连继无装灌、无内塞实际情况可全智能关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

枝术指标/Main Technical Parameters：

使用的规格Filling Volume	2-30ml
生产的能力素质Productivity	30-60瓶/分  70-100瓶/分30-♏60botಞtles/min    70-100bottles/min
罐装准确度Filling Precision	≤±1%
外接电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
会自动上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
热效率 Power	2.0 kw
机械重量Weight	550 kg
样貌长度Dimension	1800*1000*1500mm
