应用与筒介/Brief Introduction：

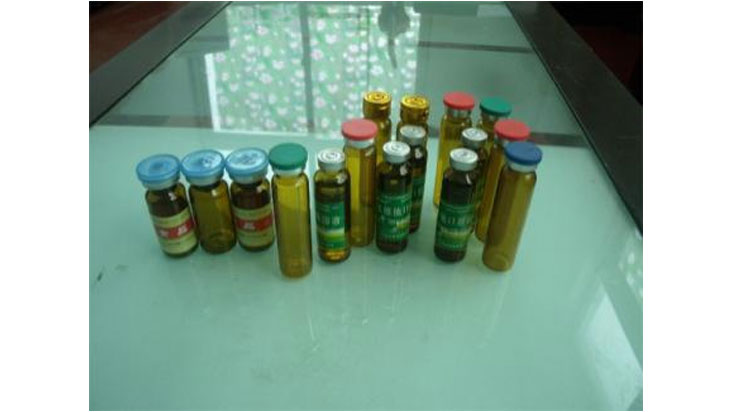

该机组为10-20ml服食液固态包装工作线中的大部分机器。是由洗瓶、风干合二为一机和包装塑封合二为一机所构成的，能智能已完成服食液瓶的洗瓶、风干、包装和塑封等动做，是服食液工作厂家直销更很理想的生活设施机器，根本贴合GMP耍求。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

基本特征/Characteristic：

◆装量正确，远离滴漏问题。装灌精确高。High filling accuracy.◆调频无级可控硅调压，工作进程可手动调节，可以择有差异 的工作进程。Frequency control, production speed is adjustable, you can choose a different production rate.◆所有的电器设备开关元件均用于进口报关闻名品店牌。All electrical components are imported famous brands.◆主动展现记数功能模块。Automatically countting function.◆管控进行泰国三菱数控系统PLC，抗干忧，的工作平稳。Controlled by Mitsubishi PLC◆机械性能固定，大保养大保养省事。Stable performance, easy maintenance.◆电脑整套装置外表层主要主要采用SUS304不锈钢装饰管吗304质作、与原材料碰到环节主要主要采用316L不锈钢装饰管吗304。电脑整套装置全部按GMP标准开发。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

技木因素/technical parameters：

使用规格参数/Bottle size	10-20ml
出生产意识力/Capacity	60-90瓶/分钟的时间/60-90bottles/min
烘干处理高温/Dryer tempreture	100-300°
循环水排水量量/Water wastage	0.5m3/h
净化器水耗量/Purifying water consumption	0.3m3/h
装量表面粗糙度/Filling precision	≤1%
供电/Voltage	380V/50Hz
输出功率/Power	33KW
生产加工线总长/Dimension	3500×1500×1600mm
