主要用途与简单介绍：Purpose and introduction

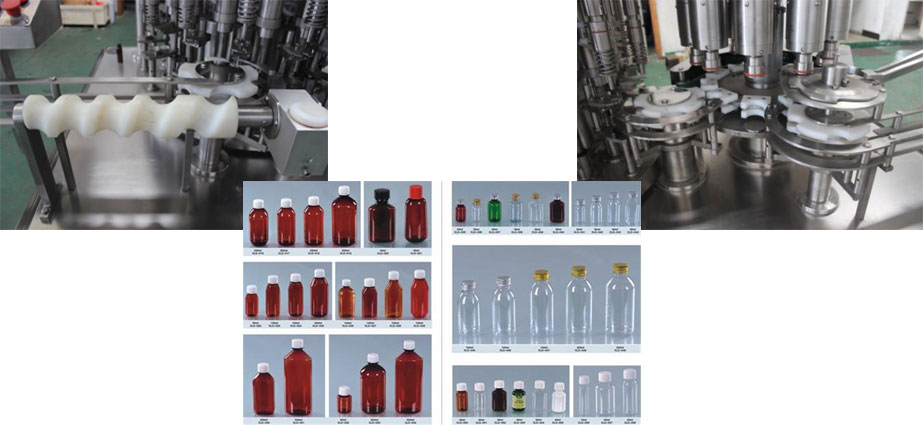

滤油机适宜于对30-500ML产品系列磨砂玻璃瓶子、塑胶板材瓶的装灌封膜。用到过往过往式活赛实行装灌，电磁能自激振荡送盖，是就能够轧盖(金属制式)或旋盖(塑胶板材盖)封膜，是就能够和上下的生孩子工作主设备连接起来成分生孩子线，不仅是就能够强化实木的选购百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特殊性：characteristic

装量合理，杜尽滴漏问题。缺瓶不灌装设备。 直流变频变频调速。 活跃彰显计数器保健作用。 该机均按GMP规定制定。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

系统技术要求/technical parameters：

型号 model	NQGX30-500
常用技术参数Cutting dimension	30-500ml
出厂性能Production capacity	80-200瓶/分（罐/1分钟）80-200 bottles/min (cans/min)
灌装线高精度 Filling accuracy	≤±1%
电压 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
自动化设备重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
